In our 17 years of experience with international projects, we have observed a significant shift in the specification patterns for hospitality and high-rise residential buildings. The traditional dominance of sliding windows is waning, replaced by a surge in demand for tilt and turn aluminum windows for hotel projects.
This shift isn’t a mere aesthetic trend; it is a response to stricter building codes and evolving guest expectations.

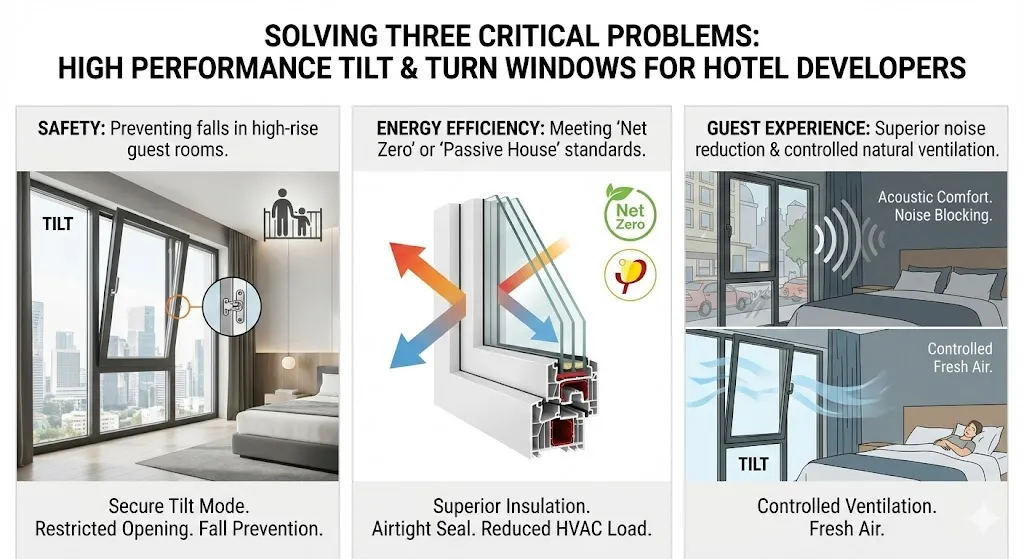

✅ Solving Three Critical Problems
High performance tilt and turn windows for hotel developers solve three critical problems that plague modern high-rise hospitality:
- Safety: Preventing falls in high-rise guest rooms.
- كفاءة الطاقة: Meeting “Net Zero” or “Passive House” standards.
- Guest Experience: Providing superior noise reduction and controlled natural ventilation hotel guest rooms tilt and turn windows.
Originally a staple of german tilt and turn windows engineering, this fenestration style has crossed the Atlantic and is now a preferred choice for luxury developments from New York to Dubai.
🔄 What is a Tilt and Turn Aluminum Window?
Tilt & Turn aluminum windows utilize a sophisticated multi-point hardware system that allows the sash to operate in two distinct modes via a single handle.
The Two Operating Modes
🚪 1. “Turn” Mode (Side-Hung)
When the handle is turned 90 degrees horizontal, the sash swings inward like a door. This mode provides maximum airflow and, crucially, allows for safe cleaning of the exterior glass from the inside of the room.

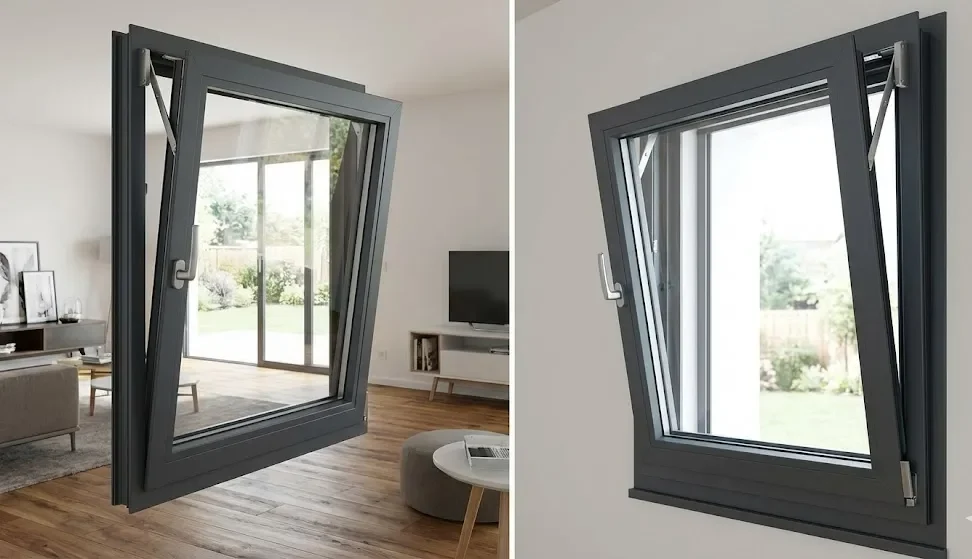

🌬️ 2. “Tilt” Mode (Bottom-Hung)
When the handle is turned 180 degrees upward, the top of the sash tilts inward (usually 10-15 degrees), while the bottom remains hinged. This allows for secure, draft-free ventilation.
⚙️ Structure and Hardware Overview
The system combines robust aluminium engineering with precision mechanics:
1. Structural Profile Design
- Thermally Broken Profiles: The structure consists of two aluminium extrusions separated by a polyamide thermal barrier. This “break” is essential for meeting energy codes in modern hotel projects.
- Euro-Groove System: A standardized channel within the sash profile houses the transmission hardware.
2. Key Hardware Components
- The Handle: A single operator controlling all locking points.
- Scissor Stay: The critical arm mechanism at the top that supports and controls the sash in “Tilt” mode.
- Mushroom Cam Locks: These engage with strikers on the frame to compress the EPDM gaskets tightly, ensuring superior airtightness.
- Heavy-Duty Hinges: Designed to support the heavy weight of triple or acoustic glass (often 80kg–130kg).
⚖️ Comparison with Common Window Types
To help you decide between tilt and turn vs sliding windows in hotels or tilt and turn vs casement windows for hotel projects, refer to the comparison below:
| ميزة | النوافذ القابلة للإمالة والدوران | Sliding Windows | Outward Casement |
|---|---|---|---|
| Ventilation | Dual (Gentle Tilt / Full Turn) | Single (Open only) | Single (Open only) |
| Sealing | Excellent (Compression seal) | Average (Brush seal) | Good (Compression seal) |
| تنظيف | Easy (From inside) | Difficult (High rise risk) | Difficult (Needs external access) |
| Space | Occupies indoor space | Space saving | Obstruction outside |
| أمان | High (Tilt mode is secure) | Low (Needs limiters) | Medium (Risk of falling sash) |
For a broader look at window styles, you can refer to our article on Types of Aluminium Windows: Styles and Features].
🏗️ Project Scenarios Suitable for Tilt and Turn Windows
1. Urban High-Rise Residential & Serviced Apartments
For tilt and turn windows for high rise residential hotels, the primary driver is maintenance. In buildings exceeding 20 stories, setting up gondolas for window cleaning is prohibitively expensive. Tilt and turn aluminium windows allow housekeeping to clean the exterior glass safely from the corridor, drastically reducing operational expenditure (OPEX).
🏙️ Project Case Study: Herkimer Gardens, New York
One of our proudest implementations is the Herkimer Gardens project in Brooklyn, New York. This is a multi-story assisted living facility where safety and comfort were paramount. We supplied our proprietary A80T Series aluminum system throughout the building.
The Challenge:
The developer needed a solution for tilt and turn windows for senior living apartments in New York that was easy for elderly residents to operate but safe enough to prevent accidents.
Our Solution:
- Combination Design: We utilized A80T tilt-and-turn units combined with fixed glass to create a uniform facade.
- Accessibility: We adjusted the handle height to be reachable for wheelchair users and calibrated the operating force to be under 50N.
- Safety Hardware: We installed “Tilt-First” handles with key locks. Residents can freely use the “Tilt” mode for ventilation, but the “Turn” mode is locked and only accessible by staff for cleaning.
The Result:
Post-occupancy feedback showed that the energy efficient tilt and turn windows for high rise hotels (and senior living) significantly lowered heating loads in New York’s winter. Furthermore, the acoustic attenuation provided by the dual-seal system meant the street noise from Brooklyn was effectively blocked, improving resident sleep quality.
2. Luxury Hotel Guest Rooms
In 5-star establishments, tilt and turn window solutions for luxury hotel design are chosen for their acoustic properties. A quiet room is the baseline of luxury. The multi-point locking system compresses the sash tightly against the frame, blocking noise leakage that often occurs in sliding tracks.

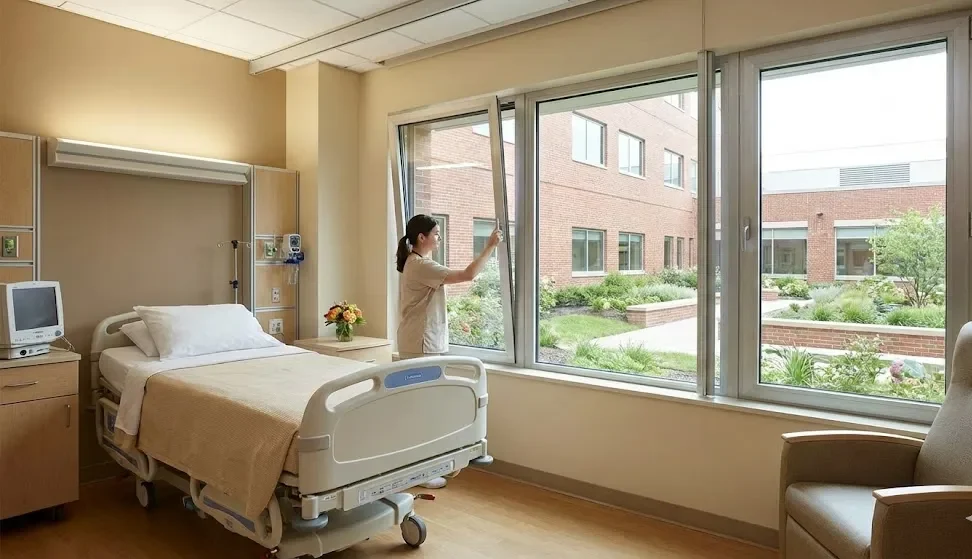

3. Public Buildings (Hospitals & Schools)
Here, the “Tilt” function provides hotel window safety solutions tilt and turn configuration. It allows fresh air exchange without creating a gap large enough for a person to pass through, mitigating liability risks.
🏗️ Developer’s Perspective: Core Advantages of Tilt and Turn Windows
Why should you specify tilt and turn aluminium windows for serviced apartments or hotels? The benefits are quantifiable.
1. Ventilation and Comfort
Natural ventilation hotel guest rooms tilt and turn windows offer a unique micro-climate control. In the Tilt position, hot air escapes through the top gap, while cool air enters gently from the sides. This indirect airflow prevents strong drafts from blowing directly onto the bed or desk, a common complaint with outward opening aluminium casement windows.
📊 Data Evidence:
Studies in environmental psychology show that guests feel more in control and satisfied when they can operate a window. However, safety is a concern. Our tilt and turn windows for improving hotel guest experience bridge this gap.
In our retrofit projects, we found that enabling the safe Tilt mode reduced complaints about stuffy rooms by over 40% compared to sealed glass facades.
2. Safety and Fall Prevention
With child safe hotel windows with tilt and turn opening mechanisms, the opening in the tilt position is usually limited to 100-150mm. This is insufficient for a child or adult to fall through but sufficient for air exchange. This built-in restriction eliminates the need for unsightly external grilles or secondary limiter chains.
3. Cleaning and Maintenance Efficiency
As mentioned, the ability to turn the window 90 degrees inward transforms window washing from a high-risk, high-cost external operation to a routine housekeeping task. For housekeeping cleaning tilt and turn windows in hotels, this efficiency can save tens of thousands of dollars annually in maintenance contracts.
4. Airtightness, Water Tightness, and Energy Efficiency
The global push for sustainability makes tilt and turn windows to reduce hotel energy consumption a smart investment.
- Sealing: The continuous gasket ensures there are no gaps.
- Thermal Performance: When paired with low U value tilt and turn windows for hotel facades (using thermal breaks and Low-E glass), the U-value can drop below 1.4 W/m²K, meeting strict energy codes.
European Standards:
We design our systems to meet European performance classes:
- Air Permeability: Class 4 (EN 12207) – The highest standard.
- Water Tightness: Class 9A or higher (EN 12208) – Crucial for tilt and turn windows for coastal hotel wind and rain protection.
- Wind Load: Class C3/C5 (EN 12210) – Essential for high-rises.
Resource: TÜV NORD Guide to Window Testing
📝 Design and Selection Checklist: A Guide for Project Owners
When specifying tilt and turn aluminium windows for hotel projects, detail is everything. Use this checklist to ensure your tender documents are robust.
1. Profile and System Selection

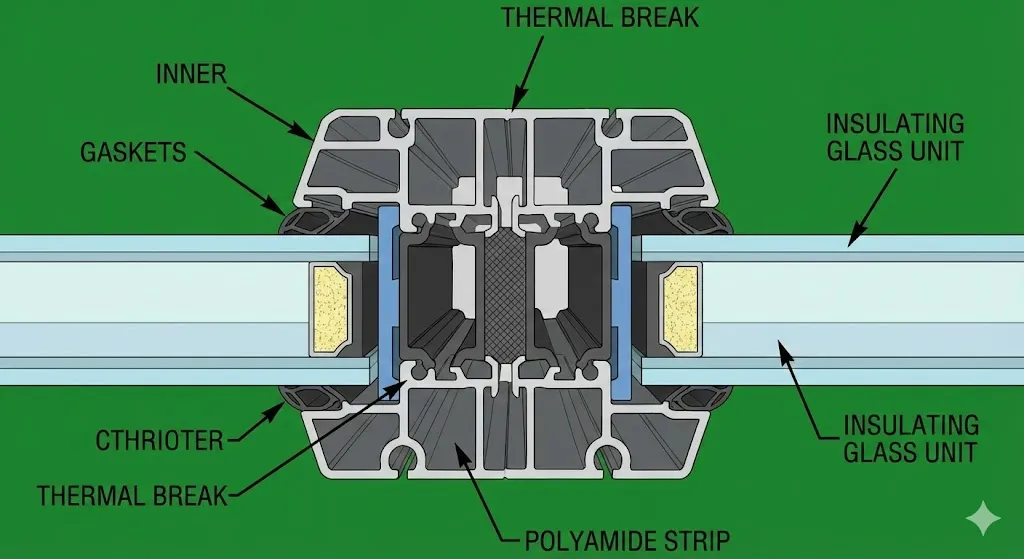

[Image of thermally broken aluminum window profile cross section]
Thermal Break: Ensure the polyamide strip is at least 24mm wide for effective insulation.
See Aluminium Door Panel U-Values: Key Insights for more on thermal dynamics.
System Depth: For high-rise projects, a frame depth of 70mm-80mm (like our A80T) provides the necessary structural rigidity.
2. Hardware Configuration
- Load Bearing: Tilt and turn window hardware for heavy hotel sashes is critical. If your design calls for triple glazing, the sash weight can exceed 100kg. Ensure hinges are rated for 130kg+.
- Surface Treatment: For coastal hotels, specify hardware with high corrosion resistance (Class 5).
3. Glass and Acoustics
- Soundproofing: ل hotel noise reduction tilt and turn window design, specify asymmetric laminated glass (e.g., 6mm + 12A + 8.76mm laminated). This disrupts sound waves more effectively.
- Safety: Inner panes should always be toughened or laminated for safety.
4. Size and Sash Weight Control
Maximum Sash Size: While tilt and turn window sizes can be large, we recommend a maximum width of 900mm and height of 2100mm for ease of operation. Larger openings should be divided into fixed and operable sections.
5. Facade Coordination
Curtain Wall Integration: We often supply tilt and turn insert windows for unitized curtain wall systems. These must be designed with floating frames to handle the differential movement of the main structure.
🚧 Construction and Installation: Reducing Leaks and Risks
Proper installation details for tilt and turn hotel windows are as important as the manufacturing.
1. Rough Opening & Structure
Unlike residential installs, commercial projects often use a steel or aluminum sub-frame. This ensures the window is installed square and plumb, which is vital for the complex hardware to function correctly.
2. Waterproofing Nodes
[Image of thermally broken aluminum window profile cross section]
Waterproofing details tilt and turn windows in hotel facades must include a stepped drainage path. The cavity between the window and the wall must be sealed with EPDM membranes, not just silicone.
3. Commissioning and Testing
Before handover, commissioning tilt and turn windows on high rise hotel projects involves:
- Checking the handle operation torque (should be smooth).
- Verifying the “anti-mishandling” device works (prevents tilting while turning).
- Conducting onsite water hose tests.
🛠️ Hotel Operations and Maintenance Advice
1. Guest Instructions
Since tilt & turn windows usa guests might not be familiar with the mechanism, we recommend placing a small decal near the handle or including instructions in the guest service directory to avoid misuse.
2. Housekeeping Protocols
Train staff on how to close tilt and turn window properly. The handle must be fully vertical (down) to lock. If left in a halfway position, the seal is not engaged.
3. Periodic Maintenance
Troubleshooting tilt and turn hotel windows not closing properly usually involves adjusting the eccentric cams on the hardware. This is a simple 5-minute task with an Allen key.
View our guide on Common Aluminium Door Defects and How to Fix Them for similar maintenance principles.
💰 Cost and ROI: Is the Investment Worth It?
When analyzing the cost of tilt and turn aluminum windows for hotel projects, you must look beyond the sticker price.
Cost Structure Breakdown
- Upfront: Yes, tilt and turn aluminium windows are generally 20-30% more expensive than sliding windows due to the complex hardware and heavier profiles.
- Installation: Similar to casement windows.
Lifecycle Comparison
However, the lifecycle cost comparison tilt and turn vs sliding hotel windows favors tilt and turn:
- Energy Savings: 15-25% reduction in HVAC costs due to superior airtightness.
- Maintenance: Reduced cleaning costs (internal access) and fewer mechanical failures (no rollers to wear out like in sliders).
For insights on global pricing trends, read our Aluminium Door and Window Market Insights.
If you are considering sourcing directly from manufacturers to lower costs, our guide on كيفية استيراد الأبواب والنوافذ من الصين is essential reading.
📝 Procurement and Tender Technical Terms
To ensure you receive CE certified tilt and turn aluminium windows for European hotels or equivalent quality for global projects, include these requirements in your tender:
🤝 How We Assist Decisions:
In our collaboration with major hotel groups, we intervene early in the design phase. We don’t just quote; we consult.
- We define the EN 12207 / EN 12208 / EN 12210 performance classes for hotel windows specific to your building’s height and wind zone.
- We provide a tilt and turn aluminum window tender specification for hotels template, ensuring no ambiguity on glass specs or hardware brands.
- We supply mock-ups for lab testing to prove the soundproof tilt and turn windows for city hotels meet the STC/OITC requirements.
📊 Key Technical Parameters for Tendering:
- Air Permeability: ≤ 0.5 m³/h·m (Class 4).
- Water Penetration: ≥ 600 Pa.
- Operating Force: Class 1 (easy to operate for guests).
- Acoustics: Rw ≥ 40dB (for city center locations).
🏁 Conclusion
Tilt and turn aluminum windows for hotel projects represent the intersection of engineering precision and guest comfort. They solve the complex problems of safety, ventilation, and maintenance that traditional windows cannot address.
If you are currently planning a hotel or high-rise project, relying on data and proven systems is key.
🚀 Ready to optimize your project?
- Contact Our Engineering Team for a consultation on the A80T system.
- Request a Quote for your specific project bill of quantities.
- Check out our Aluminium Door and Window Manufacturing Business Plan to understand the industry supply chain better.
❓ Frequently Asked Questions (FAQ)
1. Does a tilt and turn window occupy a lot of indoor space?
In the Tilt mode (used 90% of the time), it occupies only 10-15cm of top space, interfering minimally with curtains. The Turn mode is mostly for cleaning.
2. Can we use tilt and turn windows with blackout curtains?
Yes. We recommend installing blinds or shades on the sash (integrated blinds) or ensuring the curtain box is set back sufficiently.
3. Will it leak during a high-rise storm in “Tilt” mode?
A well-designed system will not. However, for high performance tilt and turn windows for hotel developers, we recommend management protocols to close windows during typhoons or hurricanes.
4. What is the maximum size for a single sash?
We recommend staying within 1.5m² for operable sashes to ensure hardware longevity. For larger openings, combine fixed lights with operable sashes.
5. How to choose tilt and turn window suppliers for hotel projects?
Look for how to choose tilt and turn window suppliers for hotel projects who have:
- Own extrusion and coating lines (QC control).
- Documented testing reports (Intertek/SGS).
- References in the hospitality sector (like our Herkimer Gardens case).
